Name: Remote Control LED Troffer PIR Motion Sensor Specially Designed
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HP05VCR

Certification : CE

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Function : 0-10V Dimming

Power : 12VDC

Control : Remote Control

Model : HP05VCR

Operating Current : >30mA

Contact Now

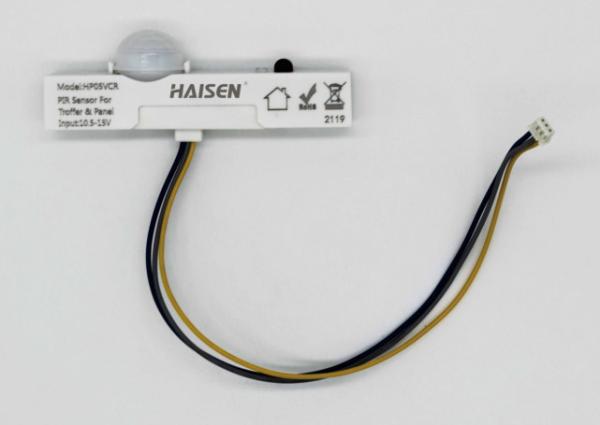

Remote Control LED Troffer PIR Motion Sensor Specially Designed

PIR Sensor 12VDC Specially Designed For LED Troffer Dimming Function

Operating Voltage	10.5-15V DC
Operating Current	>30mA
Microwave Frequency	5.8GHz±75MHz
Stand-by power	≤0.5W
Operating Current	<15mA
Programming	Remote Control HD05R
Detection Angle	Fresnel Lens ≤120° Fersnel Lens 360° Ceiling Mounted
Detection Range	Radius.<2m/6.56ft
Mounting Height	Max.6m/19.68ft Ceiling Mounted
Detection Area	25%/50%75%/100%
Hold Time	5s/30s/1min/3min/5min/10min/20min/30min
Daylight Threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by Period	0s/10s/30s/1min/5min/10min/30min/60min/+∞
Stand-by dimming	10%/20%/30%/50%
IP Rating	IP20
Operating Temperature	-35°C~+70°C
Warranty	3 Years

Detection Pattern

Remote Control LED Troffer PIR Motion Sensor Specially Designed

Wiring Diagram

Performance

HP05VCR.pdf
